| Cat No. | 202 |
| Thickness | 4.0 mm |
| Width | 11.0 mm |
| Hole Space | 13.0 mm |
| size | 4 Hole to 14 Hole Fixation with 3.5 mm Screw |
L.C.D.C. PLATE
(3.5 mm x Small)
4.5 mm – Self Tapping

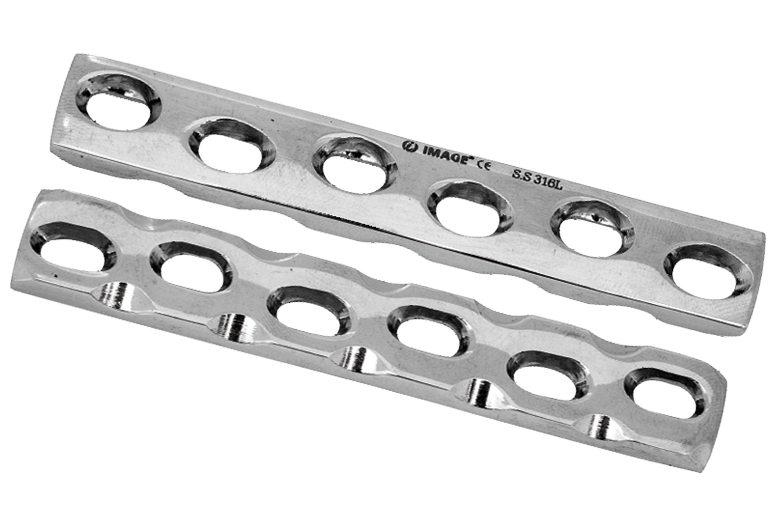

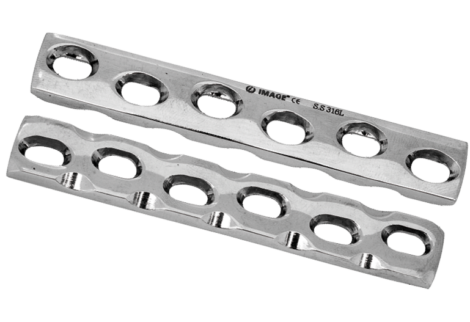

L.C.D.C. PLATE
(4.5 mm x Narrow)
3.5 mm – Self Tapping
| Cat No. | 203 |
| Thickness | 4.6 mm |
| Width | 13.5 mm |
| Hole Space | 18.0 mm |
| size | 4 Hole to 18 Hole Fixation with 4.5 mm Screw |

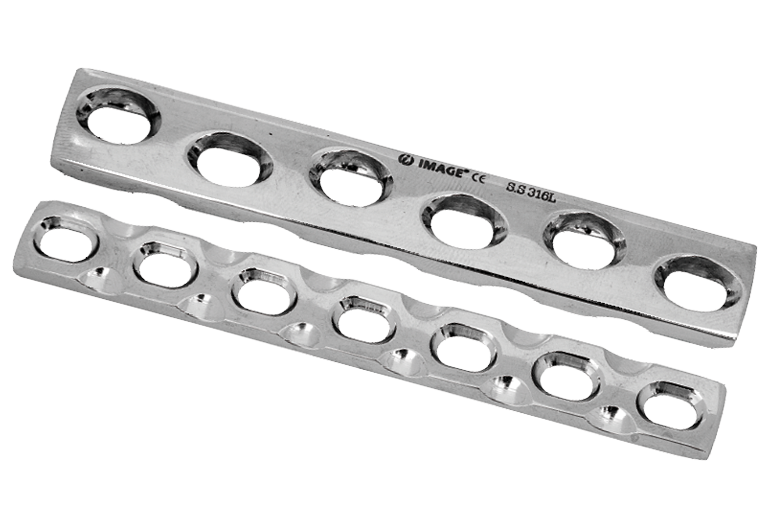

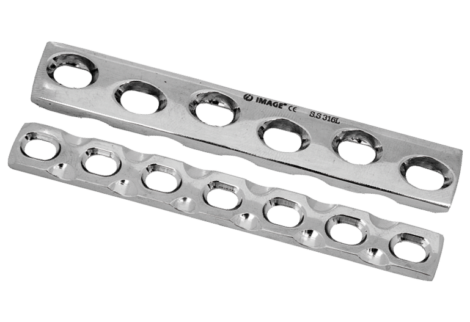

L.C.D.C. PLATE
(4.5 mm x Broad)
4.5 mm – Self Tapping
| Cat No. | 204 |
| Thickness | 6.0 mm |
| Width | 17.5 mm |
| Hole Space | 18.0 mm |
| size | 6 Hole to 18 Hole Fixation with 4.5 mm Screw |
D.C. PLATE
(3.5 mm x Small)
3.5 mm – Self Tapping

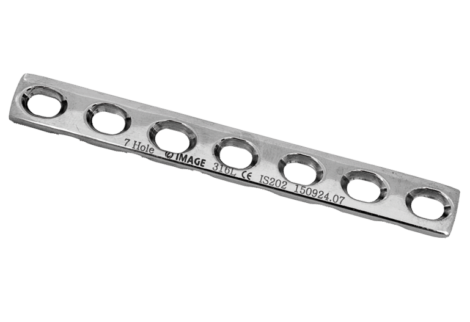

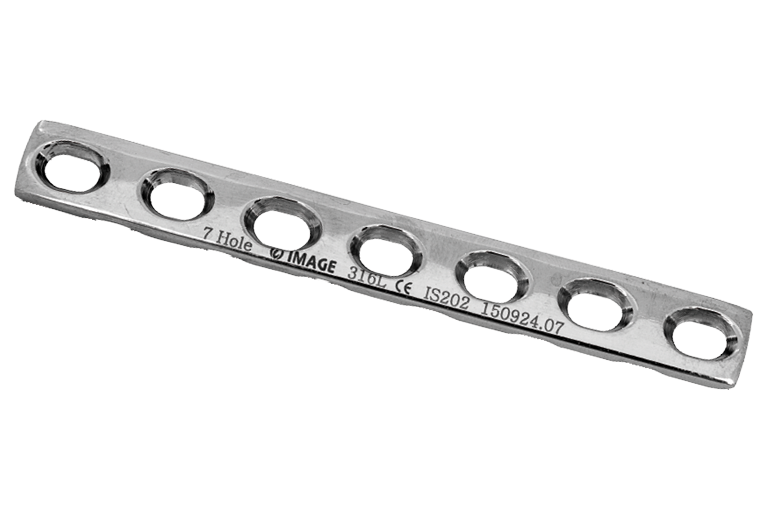

| Cat No. | 205 |
| Thickness | 3.0 mm |
| Width | 10.0 mm |
| Hole Space | 12.0 mm |
| size | 4 Hole to 18 Hole Fixation with 3.5 mm Screw |
D.C. PLATE
(3.5 mm x Small)
3.5 mm – Self Tapping
| Cat No. | 206 |
| Thickness | 3.6 mm |
| Width | 12.0 mm |
| Hole Space | 16.0 mm |
| size | 4 Hole to 20 Hole Fixation with 4.5 mm Screw |

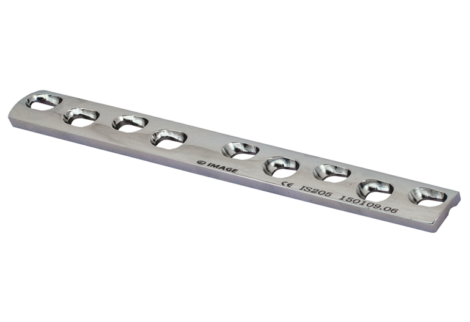

D.C. PLATE
(4.5 mm x Broad)
4.5 mm – Self Tapping

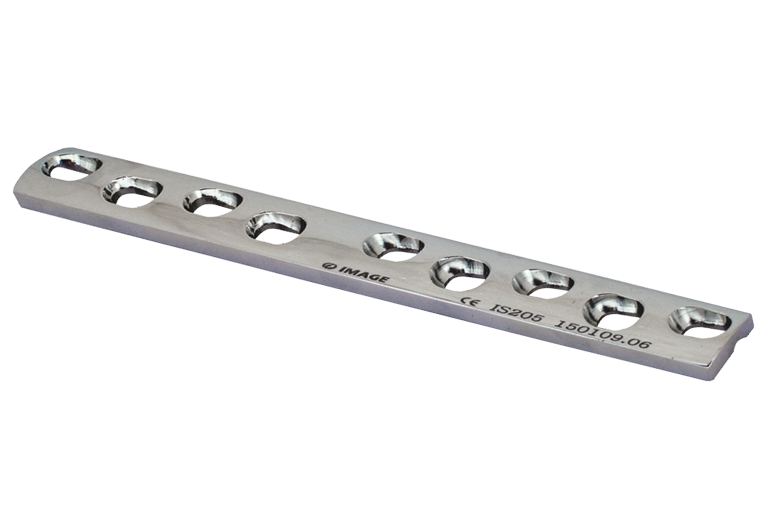

| Cat No. | 207 |
| Thickness | 4.5 mm |
| Width | 16.0 mm |
| Hole Space | 16.0 mm |
| size | 5 Hole to 24 Hole Fixation with 4.5 mm Screw |

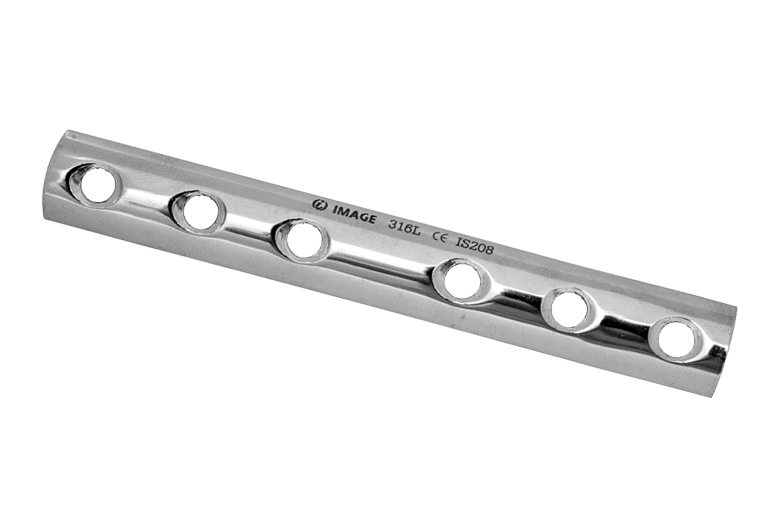

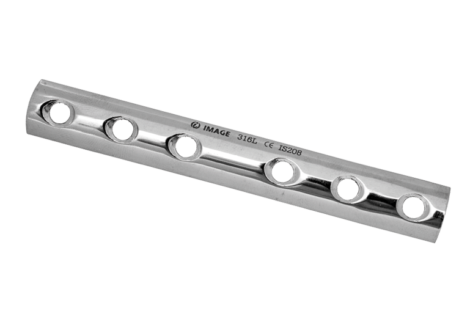

SEMI TUBULAR PLATE
(4.5 mm)
3.5 mm – Self Tapping
| Cat No. | 208 |
| Thickness | 1.5 mm |
| Width | 11.0 mm |
| Hole Space | 16.0 mm |
| size | 4 Hole to 14 Hole Fixation with 4.5 mm Screw |

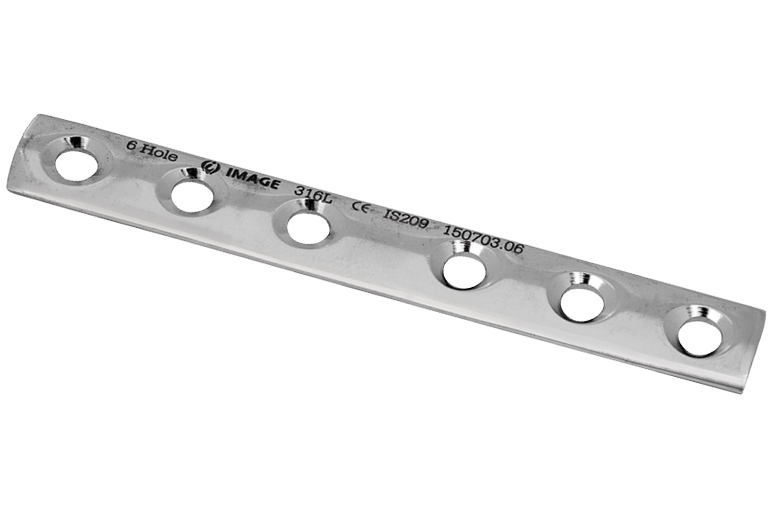

ONE-THIRD TUBULAR PLATE
(3.5 mm)
3.5 mm – Self Tapping

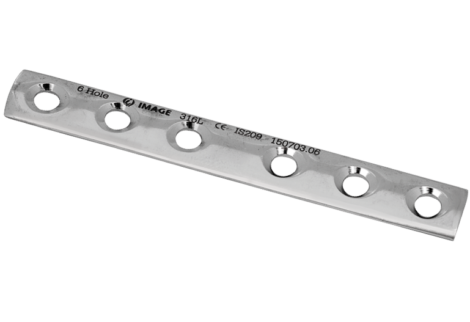

| Cat No. | 209 |
| Thickness | 1.5 mm |
| Width | 9.0 mm |
| Hole Space | 12.0 mm |
| size | 4 Hole to 12 Hole Fixation with 3.5 mm Screw |
ONE-THIRD TUBULAR PLATE
(3.5 mm)
4.5 mm – Self Tapping

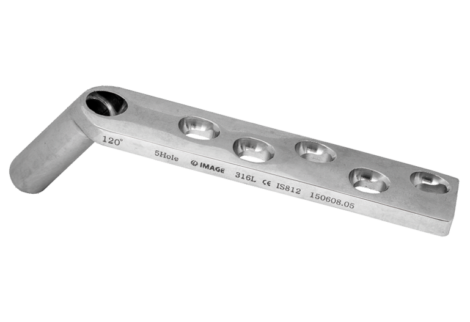

| Cat No. | 213 |
| Thickness | 6.2 mm |
| Width | 19.0 mm |
| Hole Space | 16.0 mm |
| Outer Barrel Diameter | 12.5 mm |
| Barrel Length | 38 mm |
| Size | 4 Hole to 16 Hole |
| Fixation Screw Dia | 4.5 mm |
Note : Round Holes Plate available tool

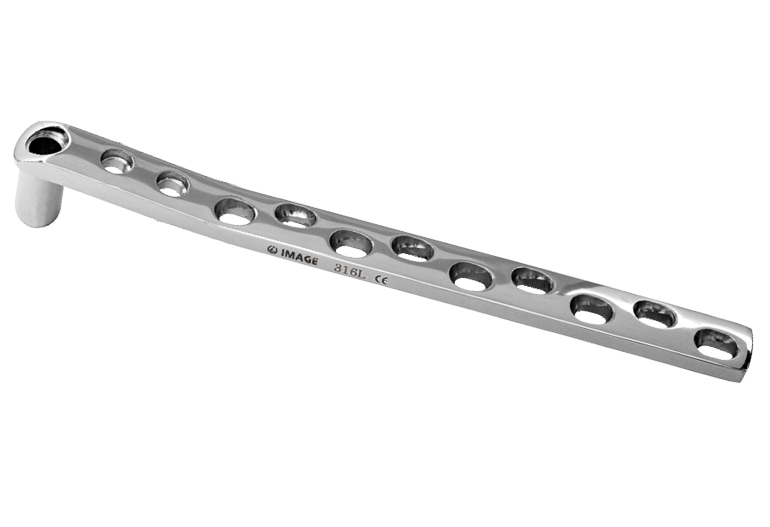

D.H.S. PLATE
(D.C. Hole)
3.5 mm – Self Tapping

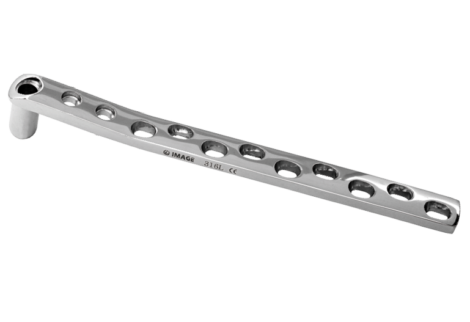

| Cat No. | 215 |
| Thickness | 5.8 mm |
| Width | 16.0 mm |
| Hole Space | 16.0 mm |
| Outer Barrel Diameter | 12.5 mm |
| Size | 5 Hole to 18 Hole |
| Fixation Screw Dia. | 4.5 mm & 6.5 mm |
Note : Round Holes Plate available too

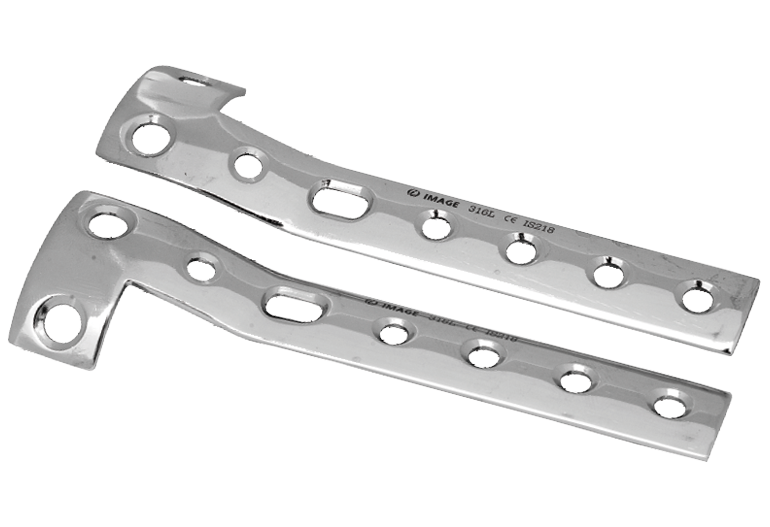

L. BUTTRESS PLATE
(LEFT & RIGHT)
4.5 mm – Self Tapping

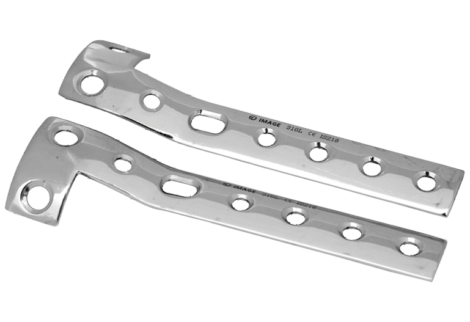

| Cat No. | 217 |
| Thickness | 2.0 mm |
| Width | 16.0 mm |
| Hole Space | 12.0 mm |
| size | 3 Hole to 12 Hole Fixation with 4.5 mm & 6.5 mm Screws |
T. BUTTRESS PLATE
(4.5 mm)
3.5 mm – Self Tapping

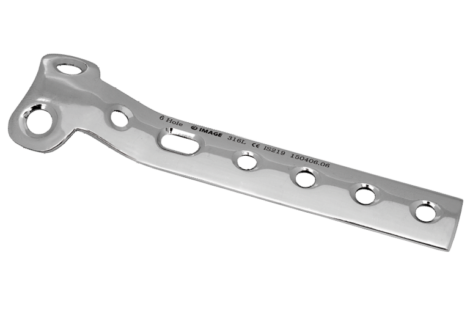

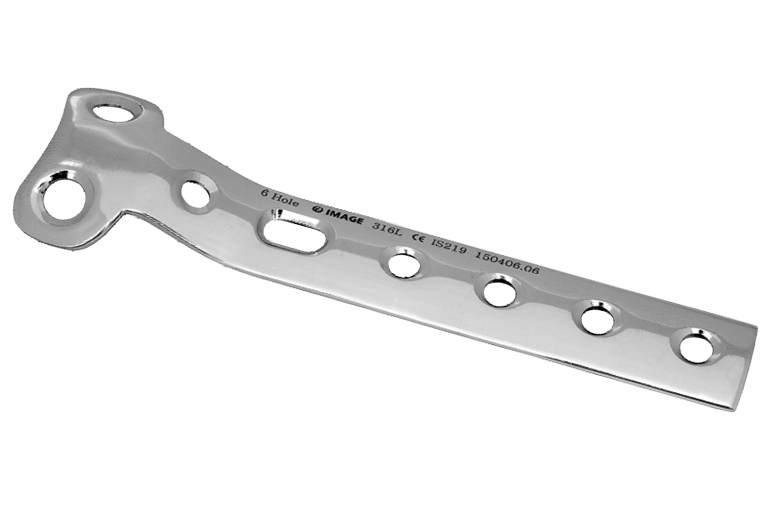

| Cat No. | 218 |
| Thickness | 2.0 mm |
| Width | 17.0 mm |
| Size | 3 Hole to 20 Hole Fixation with 4.5 mm & 6.5 mm Screws |
T. OBLIQUE PLATE
(3.5 mm)
4.5 mm – Self Tapping
| Cat No. | 219 |
| Thickness | 1.5 mm |
| Width | 10.0 mm |
| Size | 3 Hole to 8 Hole Fixation with 3.5 mm & 4.0 mm Screw |

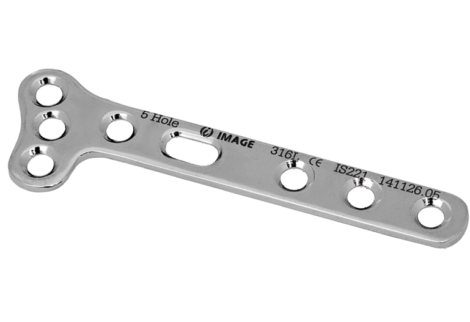

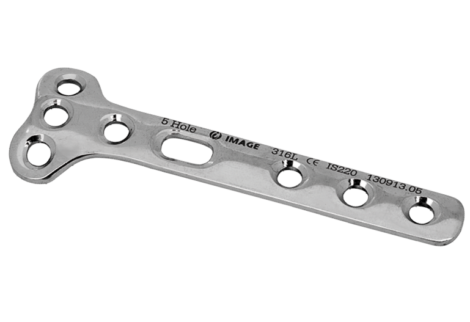

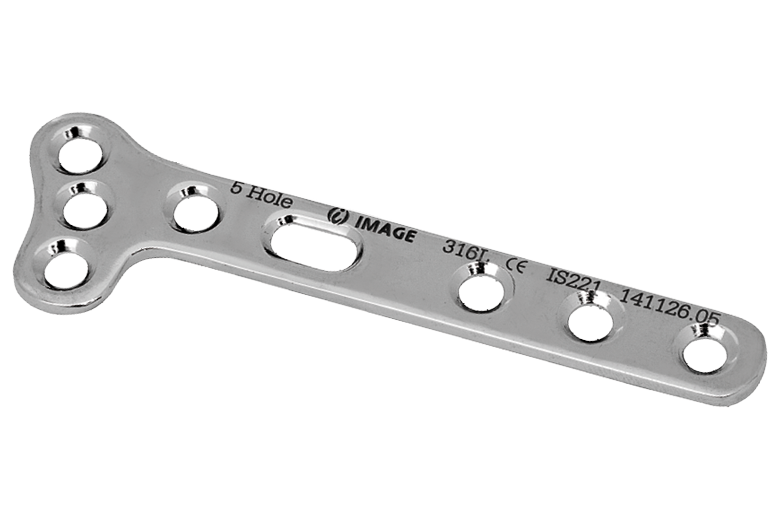

T. RADIUS PLATE
(3.5 mm)
3.5 mm – Self Tapping

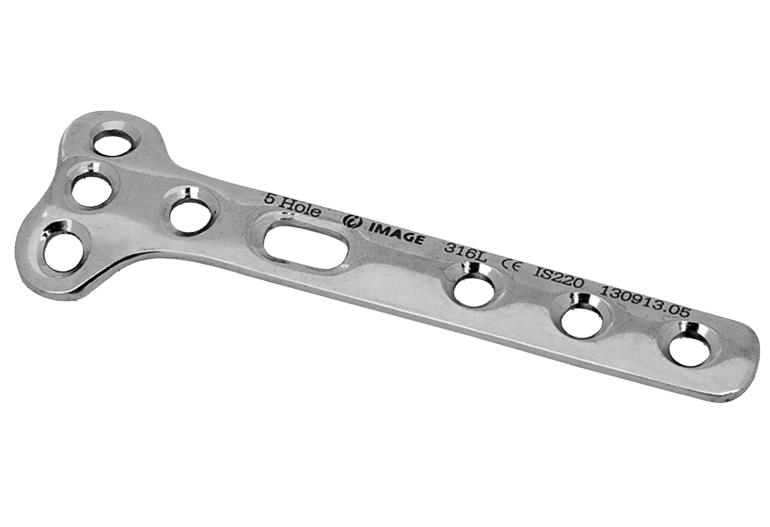

| Cat No. | 220 |
| Thickness | 1.5 mm |
| Width | 10 mm |
| Hole Space | 12.0 mm |
| Size | 6 Hole to 14 Hole Fixation with 3.5 mm & 4.0 mm Screws |

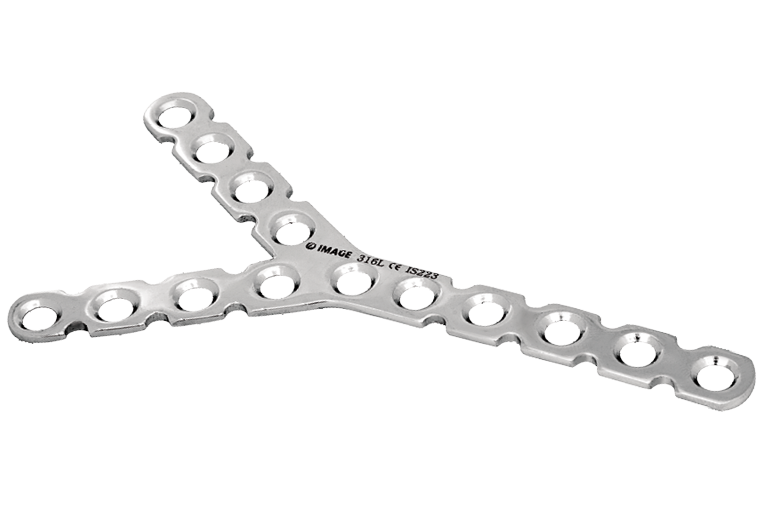

Y. PLATE
4.5 mm – Self Tapping

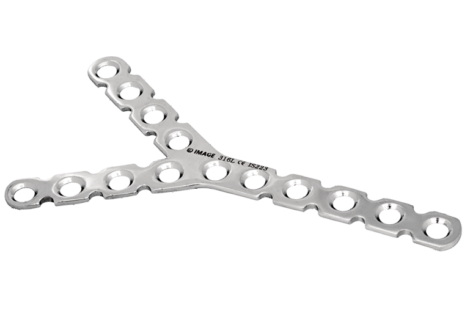

| Cat No. | 222 |
| Thickness | 2.0 mm |
| Width | 10.0 mm |
| Hole Space | 12.0 mm |
| Size | 2 Hole to 8 Hole Fixation with 4.5 mm Screws |

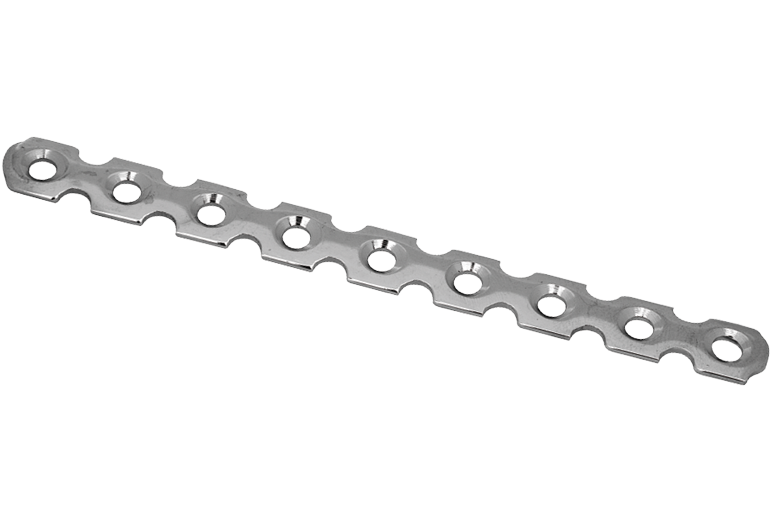

RECONSTRUCTION PLATE
(3.5 mm & 4.5 mm)
3.5 mm – Self Tapping

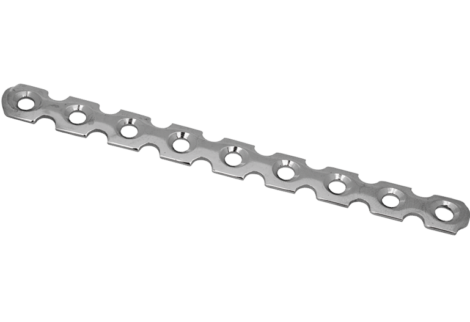

| Cat No. | 223 |
| Thickness | 10.0 mm |
| Width | 12.0 mm |
| Size | 6 Hole to 18 Hole Fixation with 2.7 mm, 3.5 mm & 4.5 mm Screws |
