| Cat No. | 301 |
| 8 mm | 280 mm to 380 mm with 20 mm variation |
| 9 mm | 280 mm to 380 mm with 20 mm variation |
| 10 mm | 280 mm to 380 mm with 20 mm variation |
| 11 mm | 280 mm to 380 mm with 20 mm variation |
INTERLOCKING NAIL
(TIBIA) UPPER BEND
4.5 mm – Self Tapping
INTERLOCKING NAIL
(FEMUR)
3.5 mm – Self Tapping

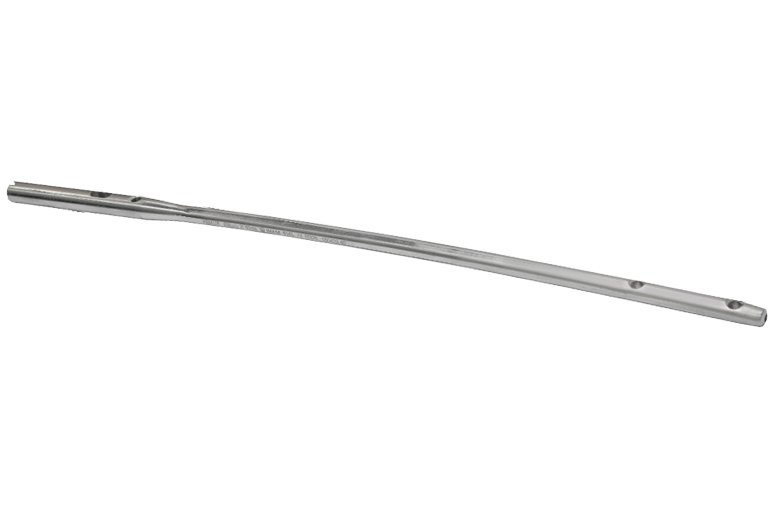

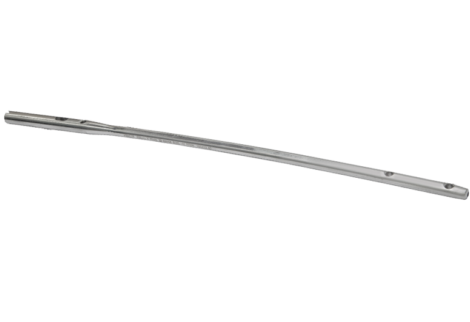

| Cat No. | 302 |
| 9 mm | 340 mm to 480 mm with 20 mm variation |
| 10 mm | 340 mm to 480 mm with 20 mm variation |
| 11 mm | 340 mm to 480 mm with 20 mm variation |
| 12 mm | 340 mm to 480 mm with 20 mm variation |

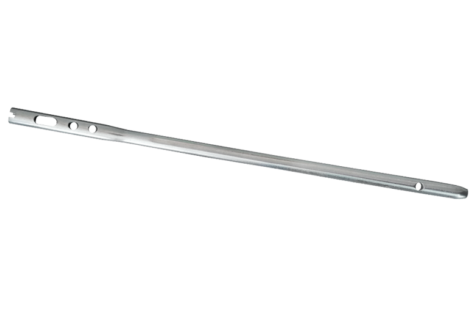

INTERLOCKING NAIL
(HUMERUS)

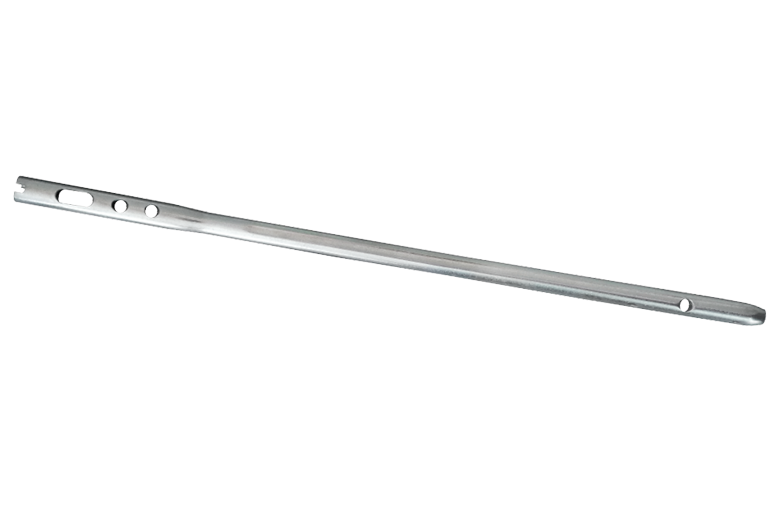

| Cat No. | 303 |
| 6 mm | 180 mm to 300 mm with 20 mm variation (Solid) |
| 7 mm | 180 mm to 300 mm with 20 mm variation (Cannulated) |
| 8 mm | 180 mm to 300 mm with 20 mm variation (Cannulated) |

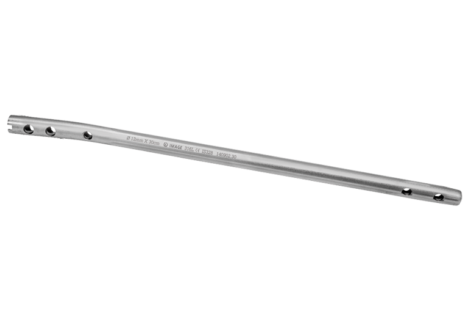

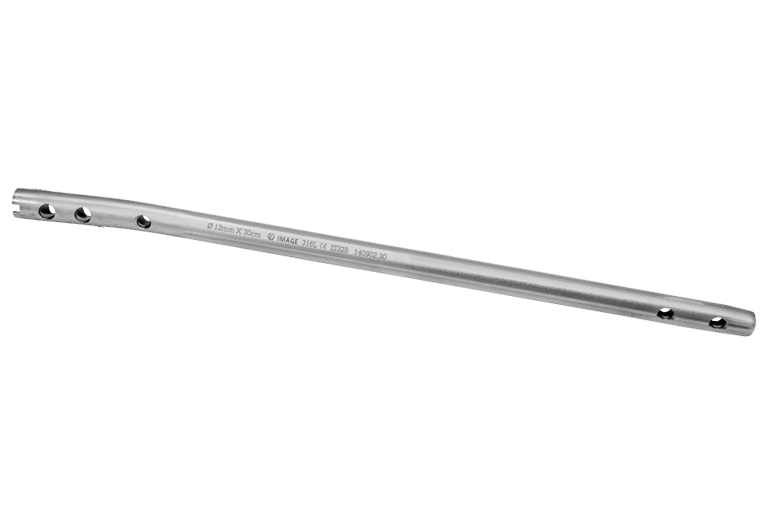

SUPRACONDYLAR NAIL
(I.M.S.C.)
| Cat No. | 304 |
| 10 mm | 150 mm to 300 mm with 50 mm variation |
| 11 mm | 150 mm to 300 mm with 50 mm variation |
| 12 mm | 150 mm to 300 mm with 50 mm variation |

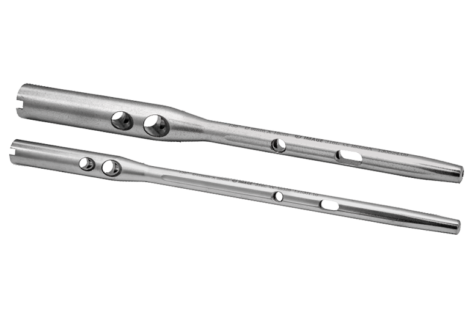

P. F. NAIL
(130° & 135°)

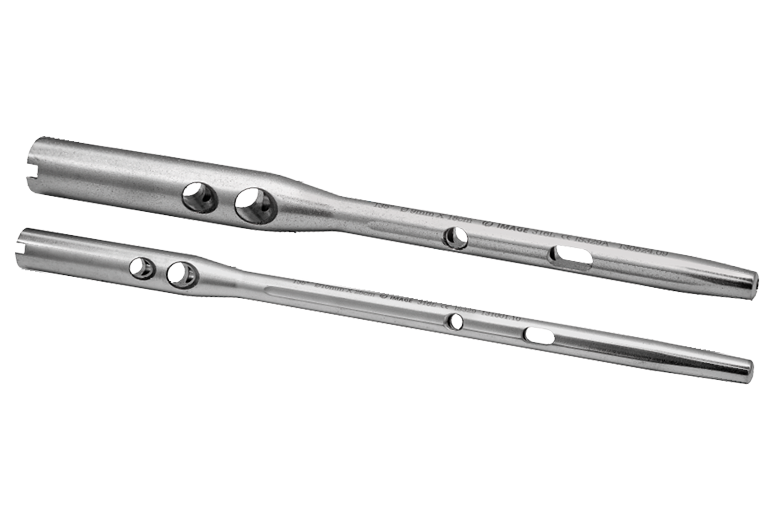

| Cat No. | 306 |
| 9 mm x 250 mm | 10 mm x 250 mm |
| 11 mm x 250 mm | 12 mm x 250 mm |

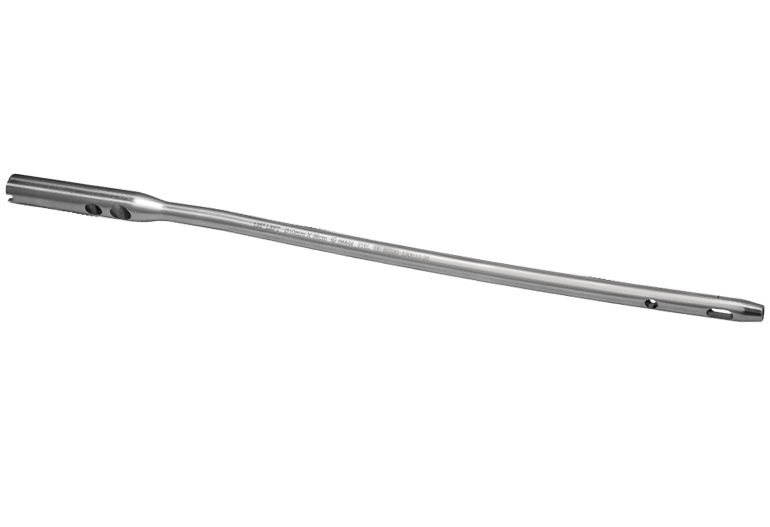

P. F. NAIL
(130° & 135°) (Left & Right)
| Cat No. | 307 |
| 9 mm | 340 mm to 460 mm with 20 mm variation |
| 10 mm | 340 mm to 460 mm with 20 mm variation |
| 11 mm | 340 mm to 460 mm with 20 mm variation |
| 12 mm | 340 mm to 460 mm with 20 mm variation |

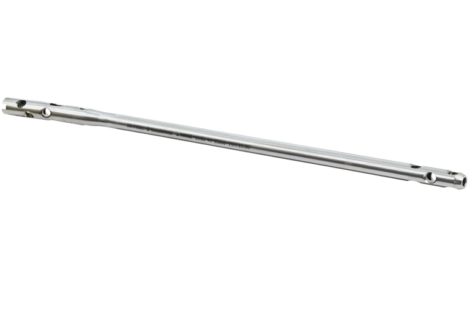

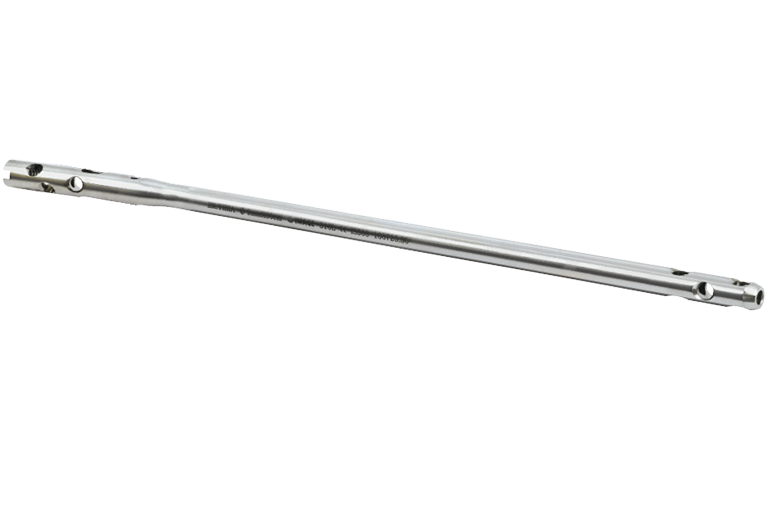

EXPERT TIBIA NAIL
| Cat No. | 308 |
| 8 mm | 280 mm to 380 mm with 20 mm variation |
| 9 mm | 280 mm to 380 mm with 20 mm variation |
| 10 mm | 280 mm to 380 mm with 20 mm variation |
| 11 mm | 280 mm to 380 mm with 20 mm variation |

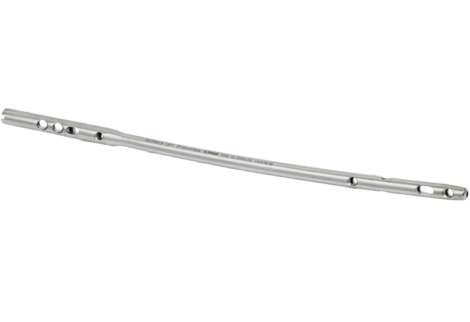

EXPERT FEMUR NAIL
(LEFT & RIGHT)

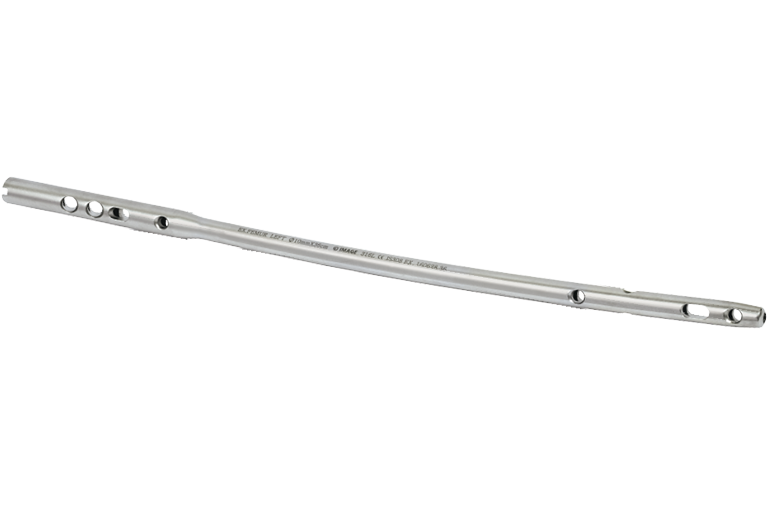

| Cat No. | 309 |
| 9 mm | 340 mm to 440 mm with 20 mm variation |
| 10 mm | 340 mm to 440 mm with 20 mm variation |
| 11 mm | 340 mm to 440 mm with 20 mm variation |

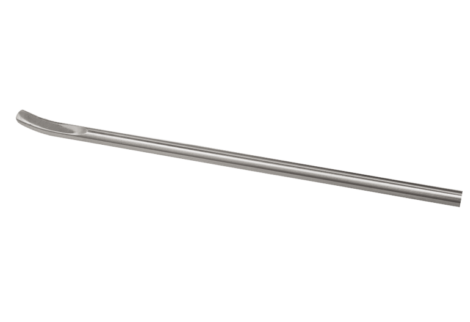

ELASTIC NAIL

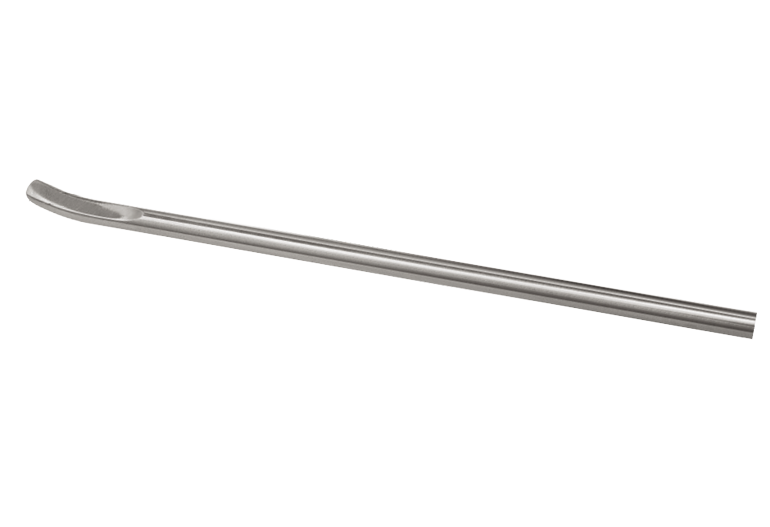

| Cat No. | 310 |
| Size |
20 mm to 50 mm |
| Length | 440 mm |

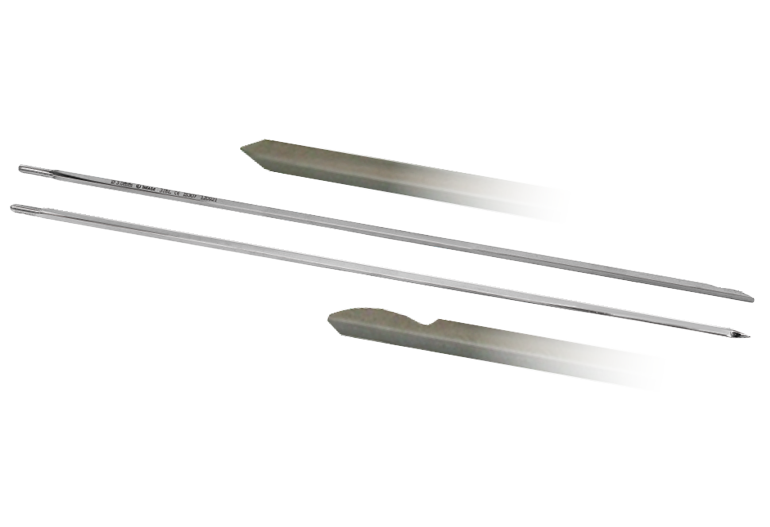

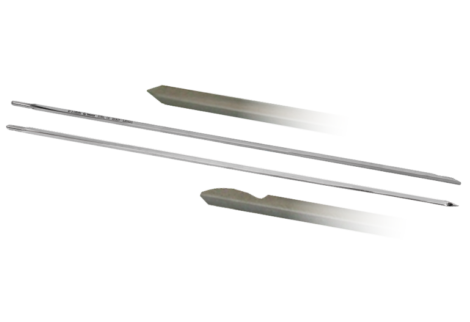

SQUARE NAIL
(RADIUS & ULNA)
| Cat No. | 311 |
| Size |
2 mm to 4 mm |
| Length | 180 mm to 300 mm with 20 mm variation |

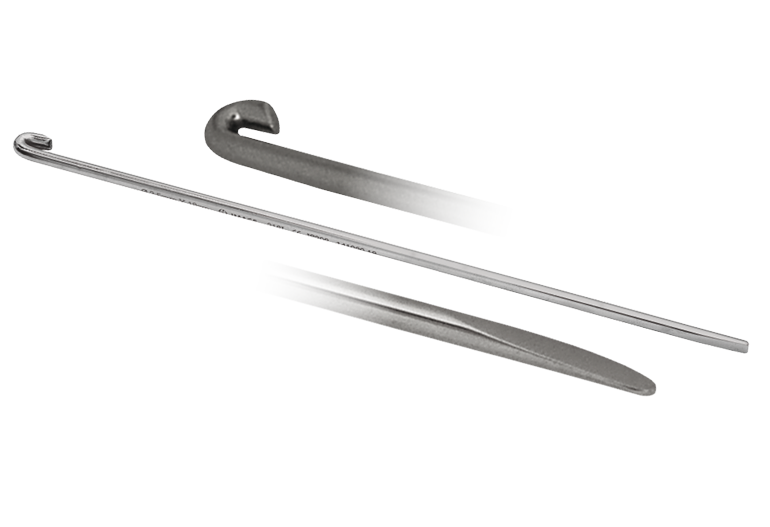

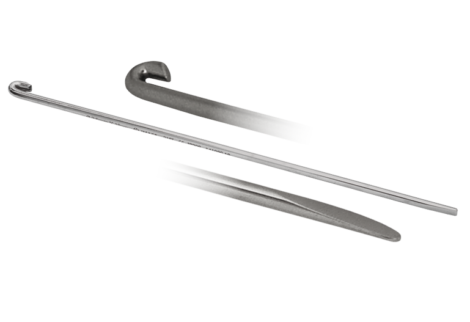

RUSH NAIL
| Cat No. | 312 |
| Size |
2 mm to 4.5 mm |
| Length | 180 mm to 300 mm with 20 mm variation |

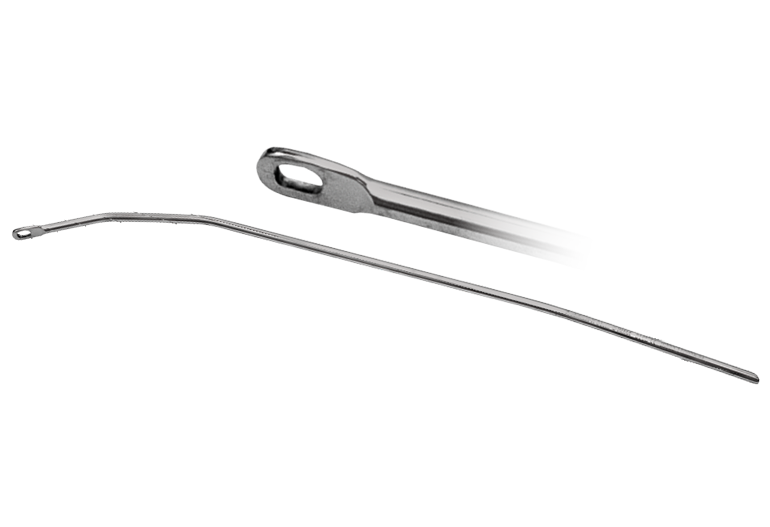

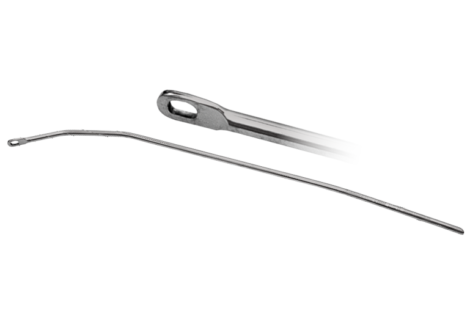

ENDERS NAIL
| Cat No. | 313 |
| 2.5 mm | 180 mm to 300 mm with 20 mm variation |
| 3.0 mm | 180 mm to 300 mm with 20 mm variation |
| 3.5 mm | 180 mm to 400 mm with 20 mm variation |
| 4.0 mm | 180 mm to 460 mm with 20 mm variation |
| 4.5 mm | 260 mm to 500 mm with 20 mm variation |

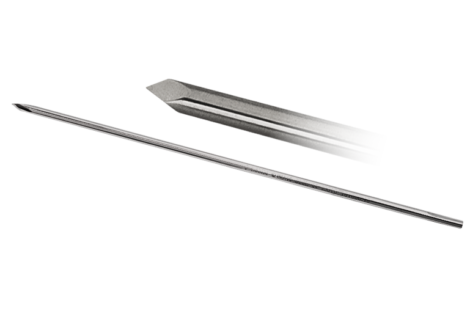

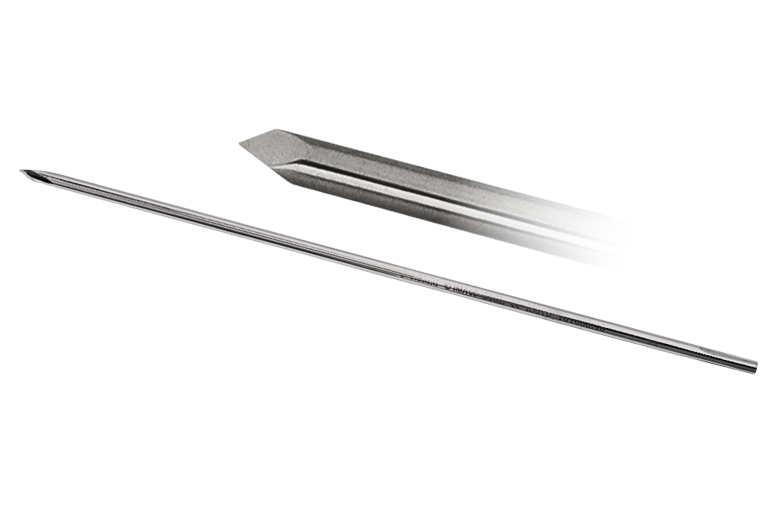

STEINMAN PIN
| Cat No. | 314 |
| Size |
3 mm to 5 mm |
| Length | 9″ Long |

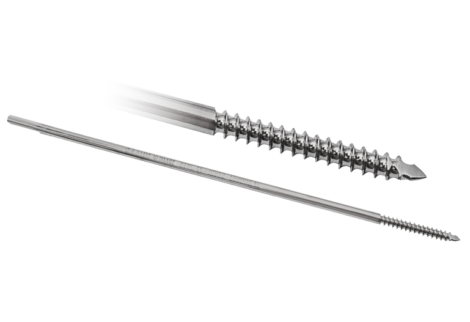

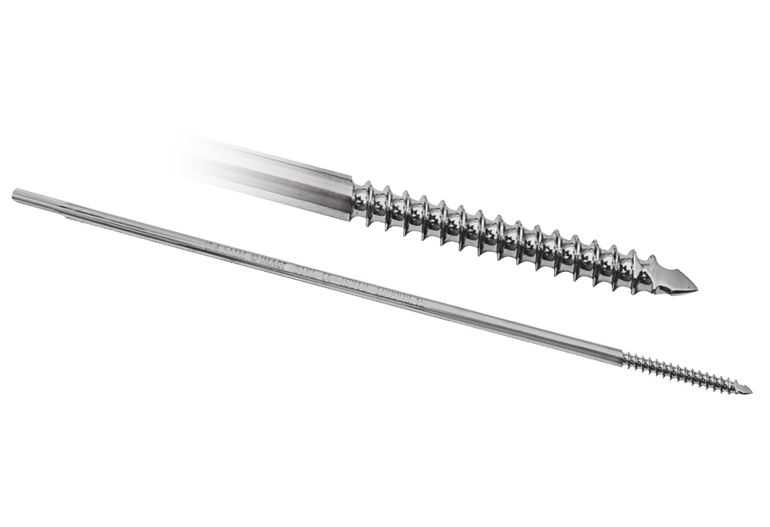

SCHANZ PIN
| Cat No. | 316 |
| Size |
2.5 mm to 4.5 mm |

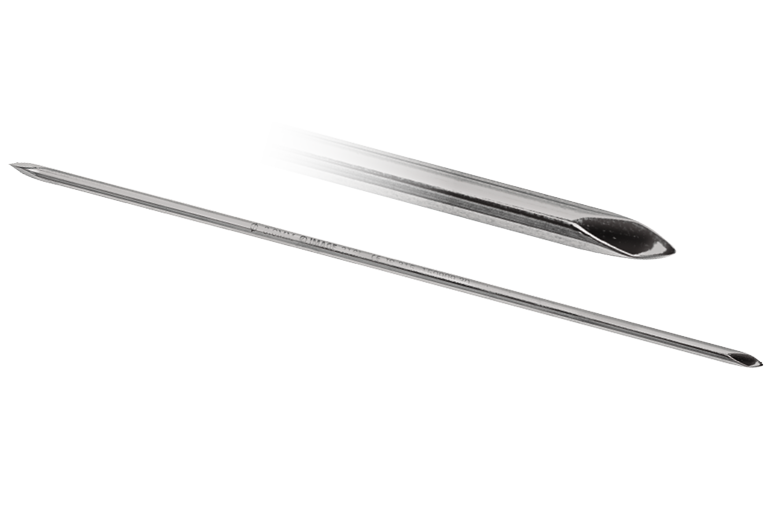

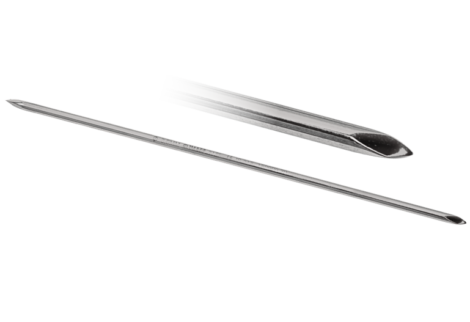

K. WIRE
(Double Ended)
| Cat No. | 319 |
| Size |
1 mm to 3 mm with 0.5 mm variation |
| Length | 6″, 9″ & 12″ |
K. WIRE THREADED
(Double Ended)

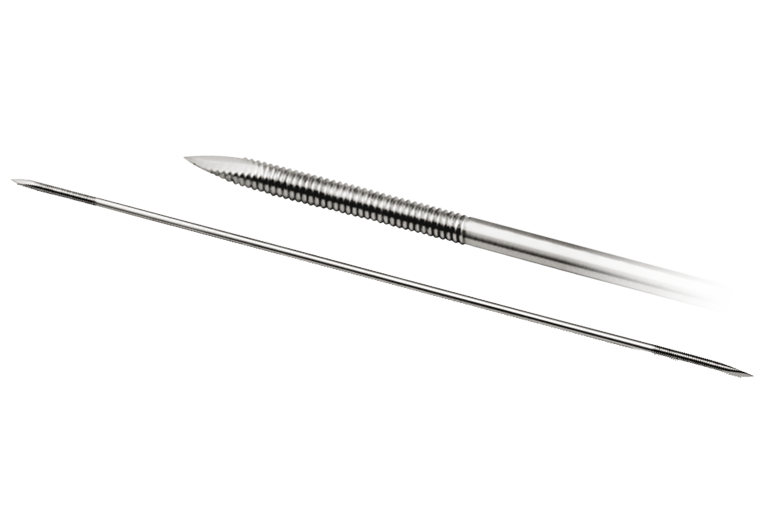

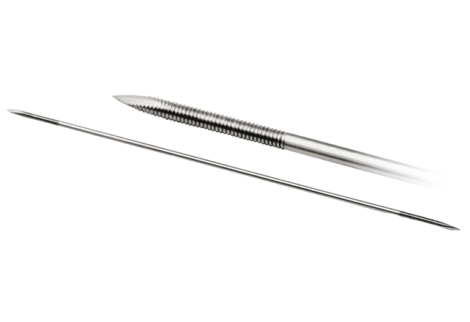

| Cat No. | 320 |
| Size |
1 mm to 3 mm with 0.5 mm variation |
| Length | 6″ & 12″ |

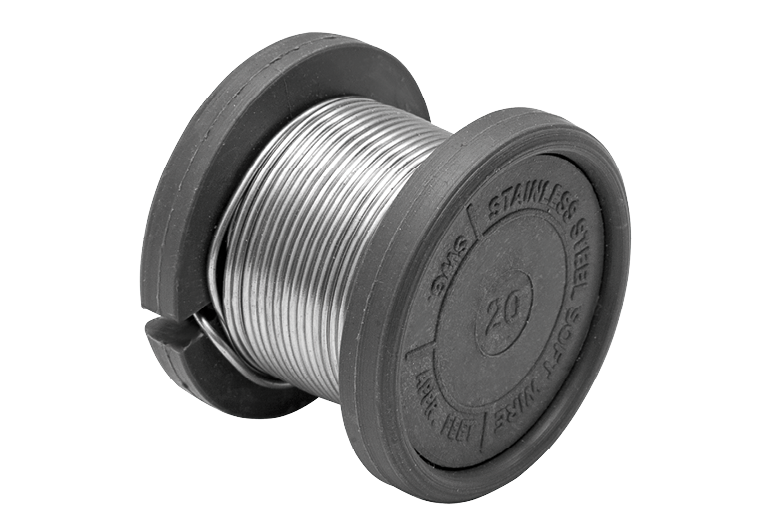

S.S. WIRE
(T.B.W.)
| Cat No. | 321 |
| Size | 16 g. to 32 g. |

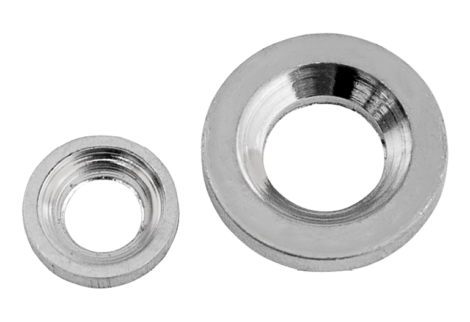

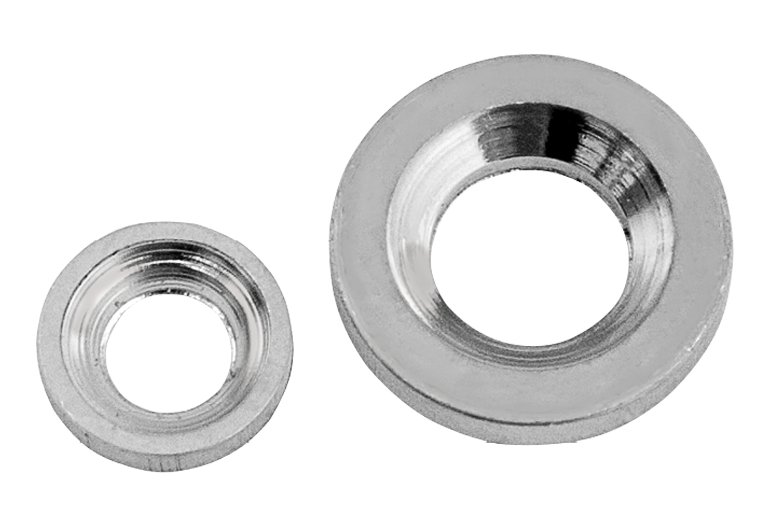

WASHER
| Cat No. | 327 |
| Size | 4 mm & 6.5 mm |
